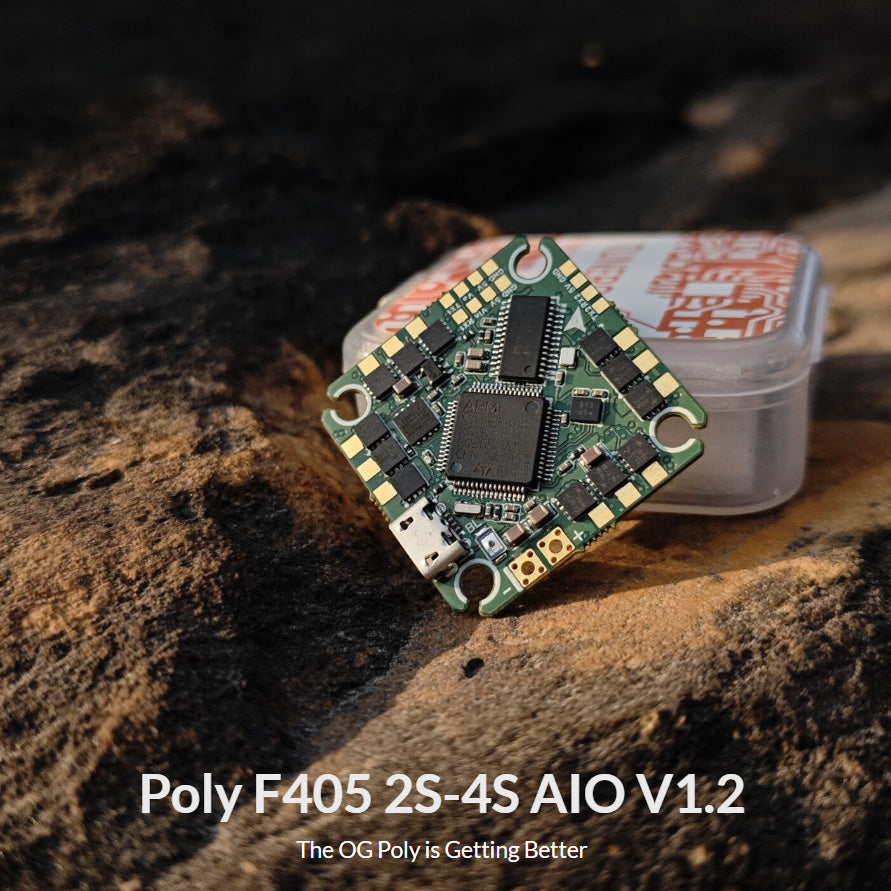

• Lightweight TuneRC Poly F405 AIO with BLHeli_S ESC and 5V BEC, perfect for cinewhoops and micro freestyle drones.

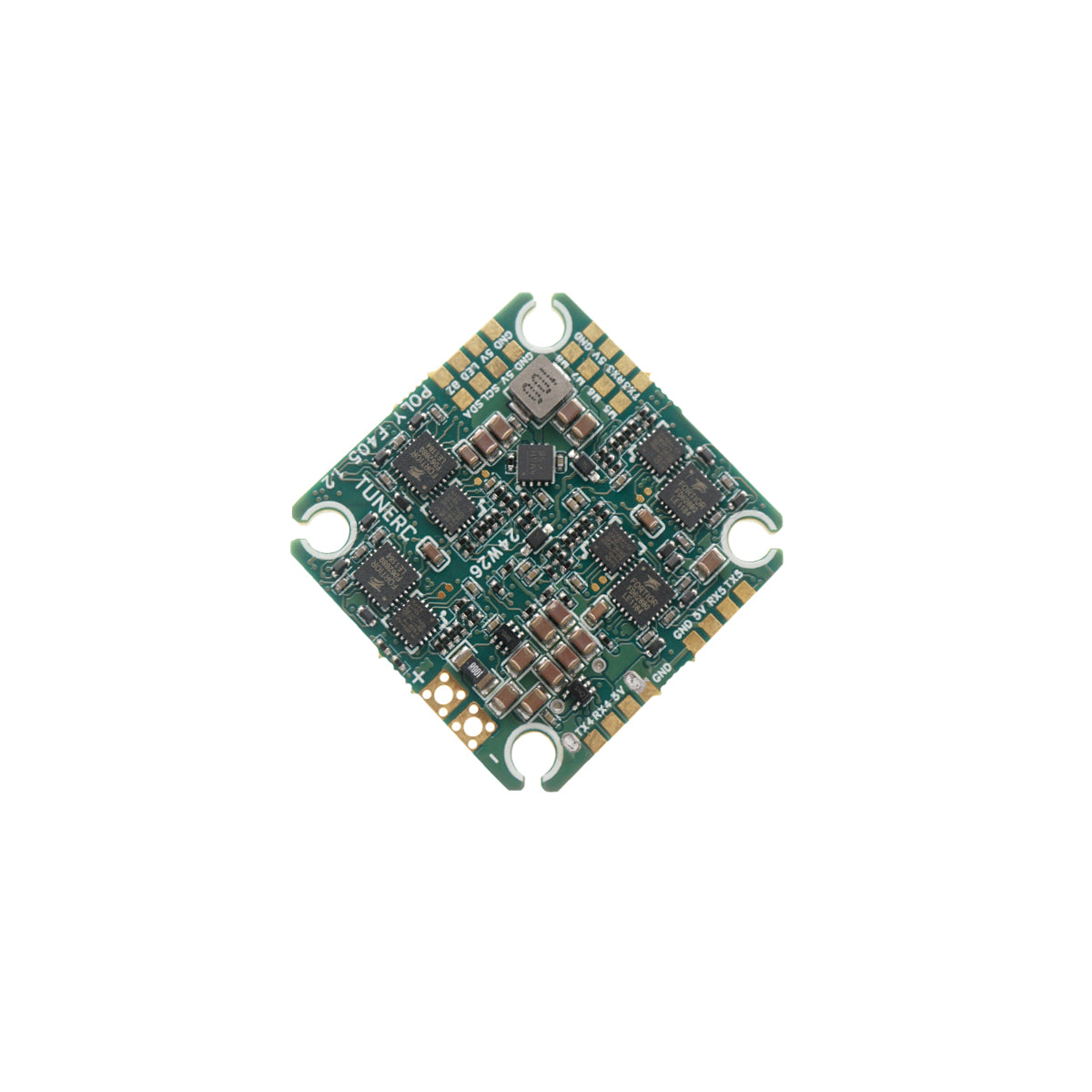

  • Backside of TuneRC Poly F405 AIO flight controller showing clean layout and compact component design.

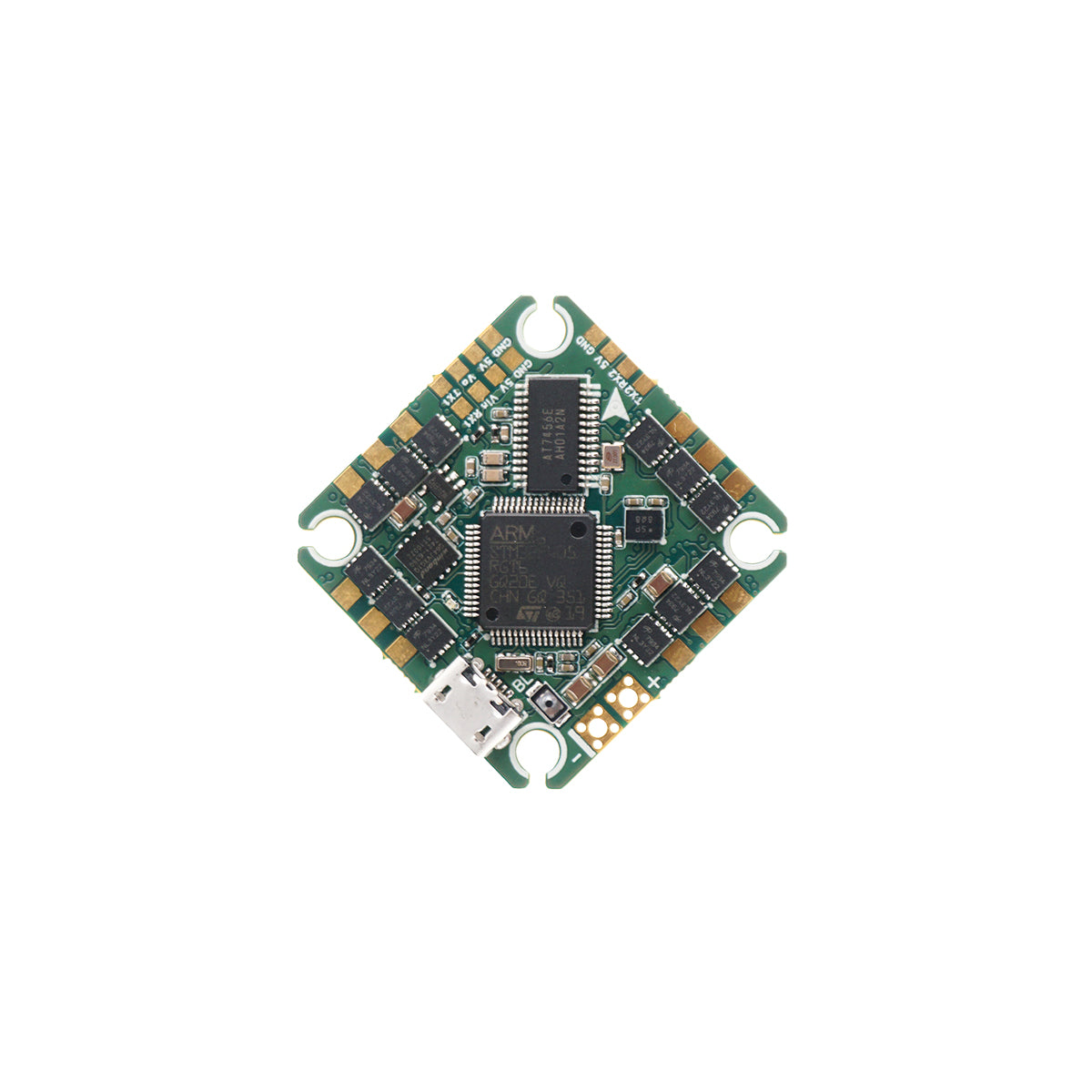

  • Top-down view of TuneRC Poly F405 AIO flight controller featuring STM32F405 processor and integrated 4-in-1 ESC.

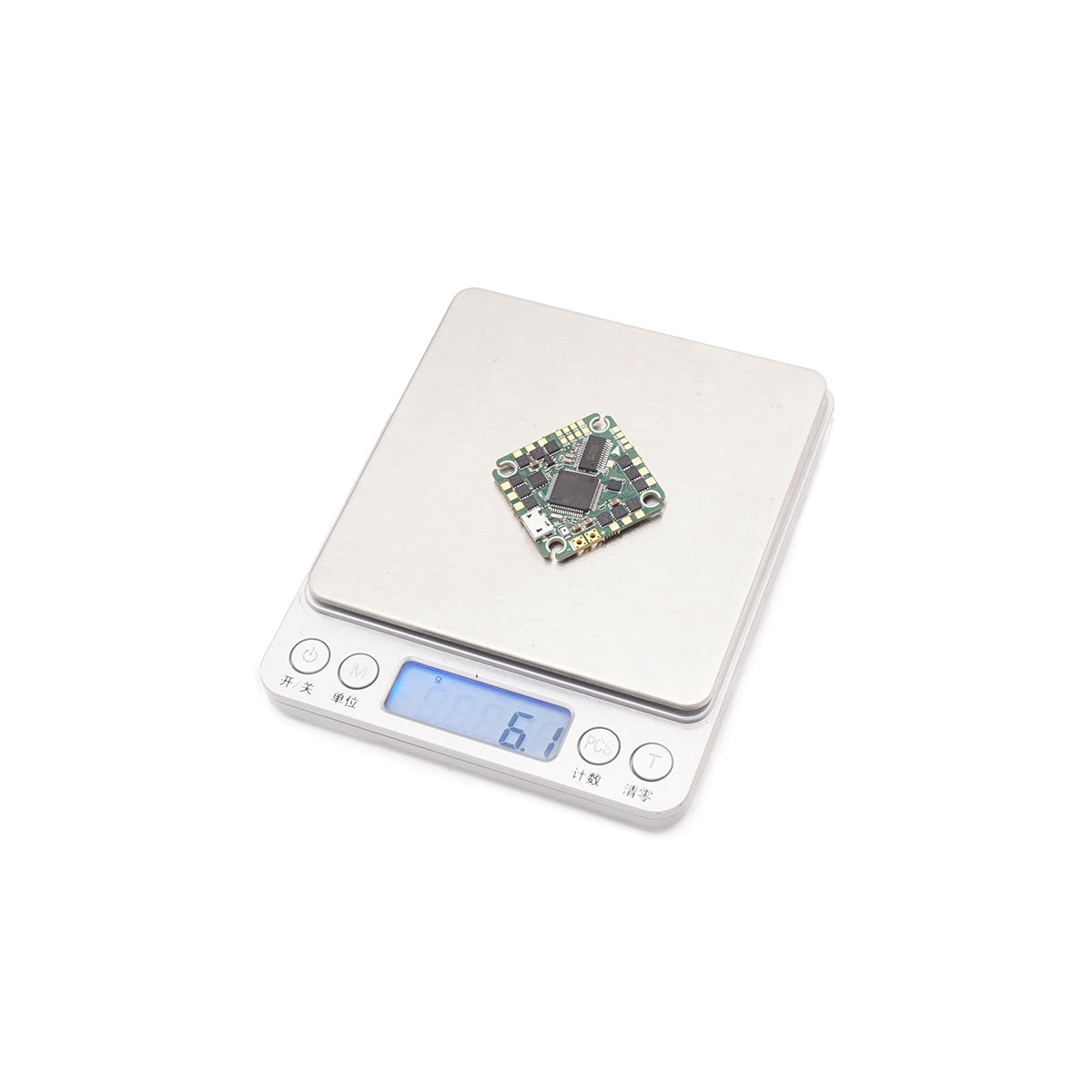

  • TuneRC Poly F405 AIO flight controller on digital scale, weighing 6.1 grams — ultra-lightweight 20x20mm FPV drone board.

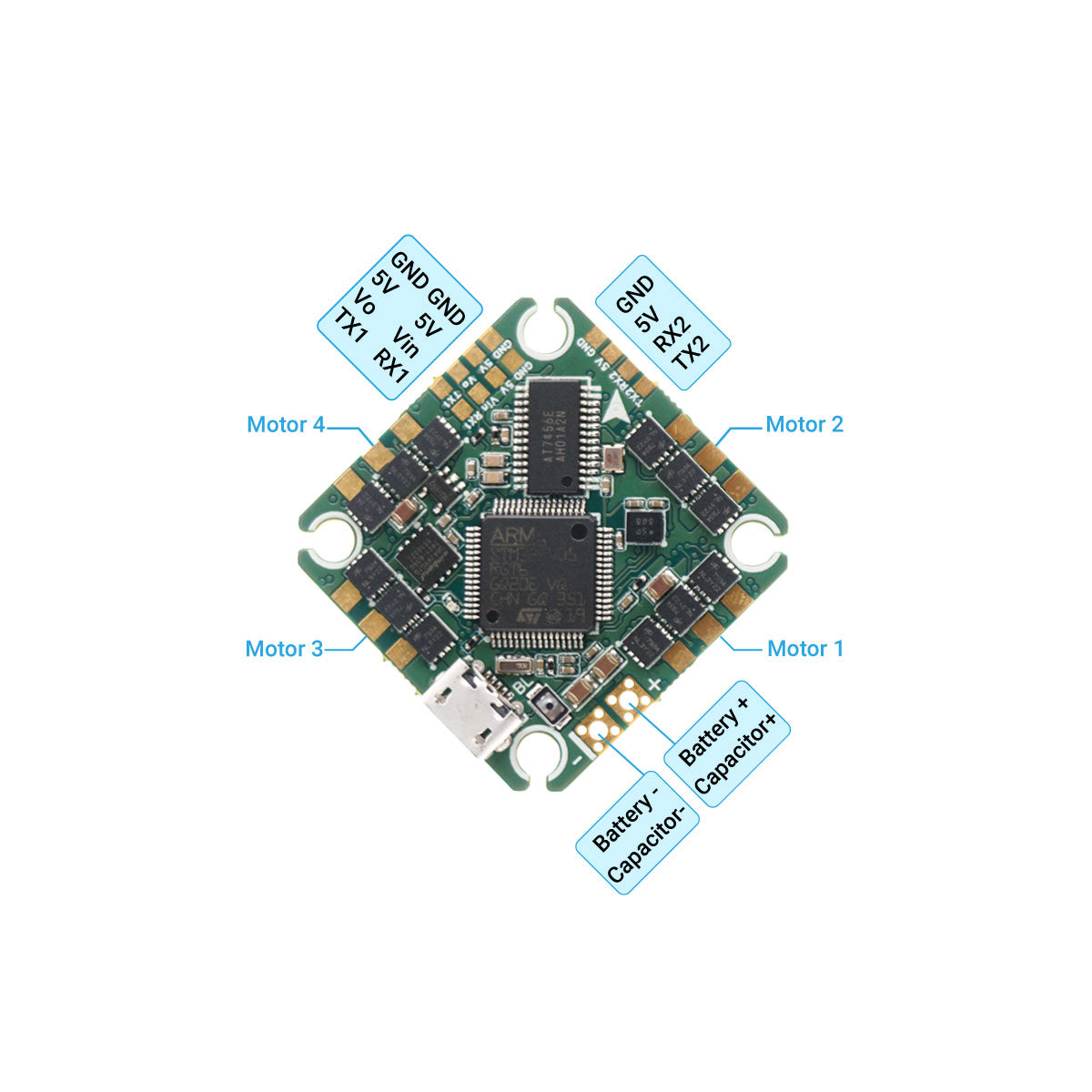

  • Top view of TuneRC Poly F405 AIO with pinout labels showing motor pads, battery inputs, and ESC signal layout.

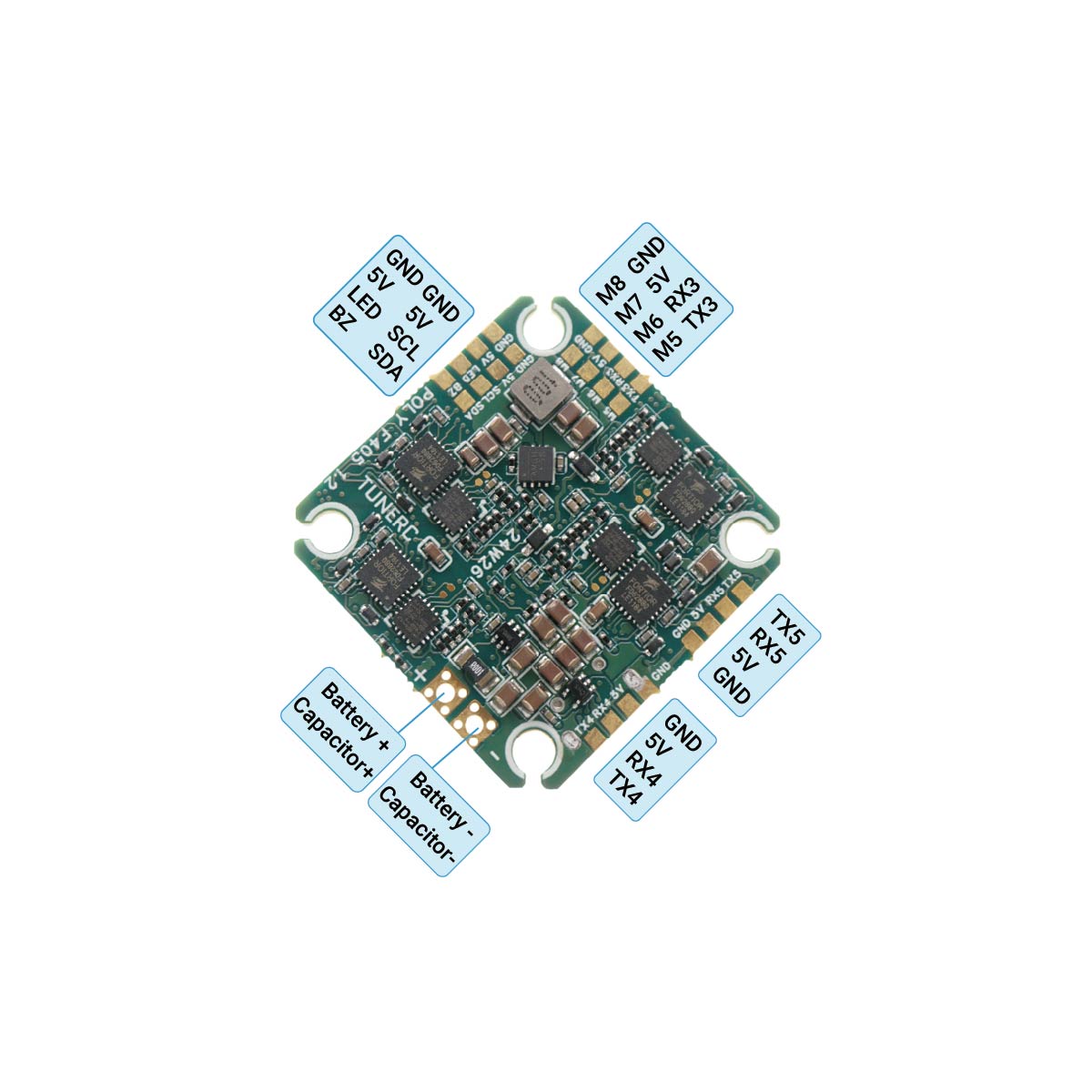

  • Bottom view of TuneRC Poly F405 AIO flight controller with labeled UARTs, battery pads, and power connections.

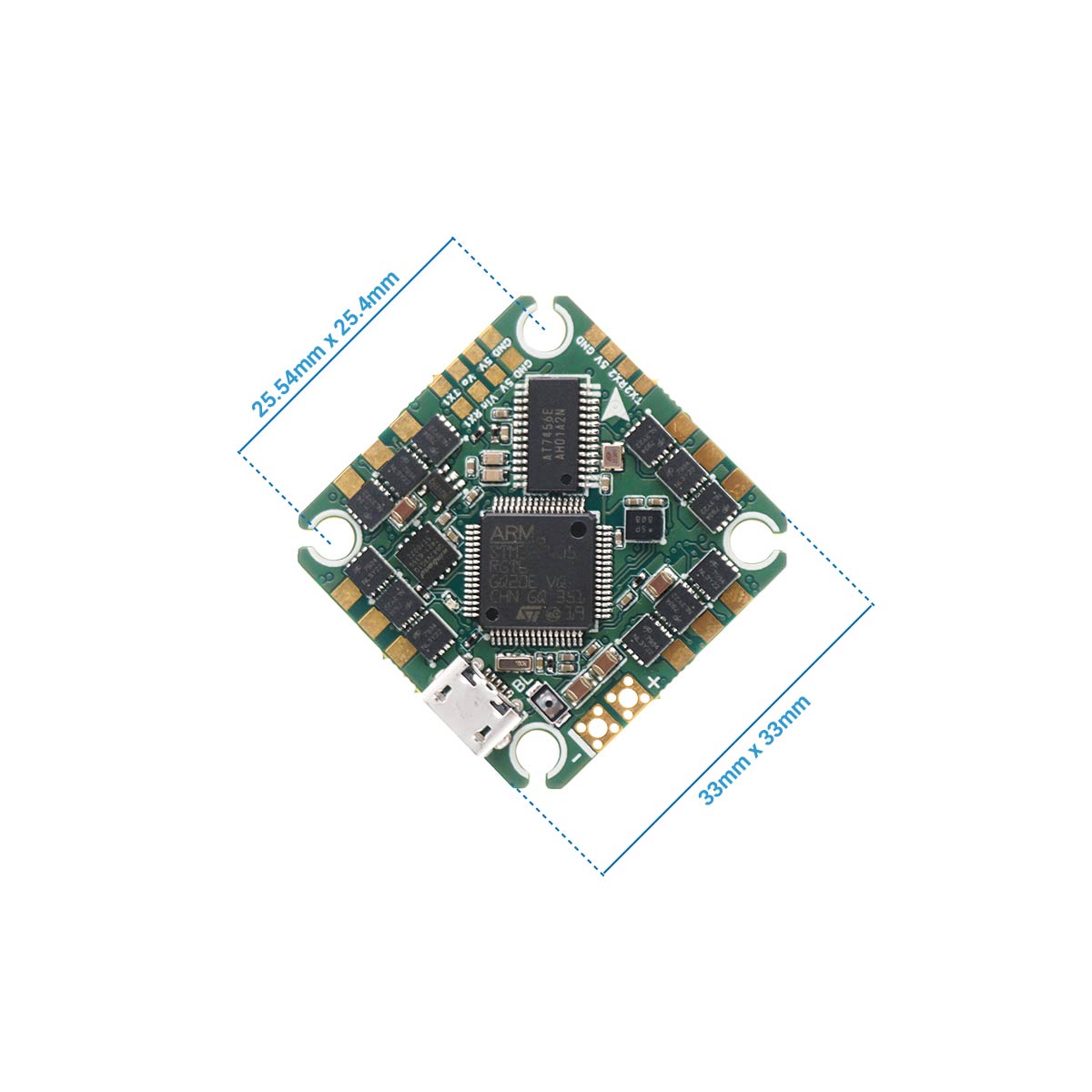

  • TuneRC Poly F405 AIO with dimensions labeled, showing 25.5mm x 25.5mm mounting and 33mm board size for micro FPV builds.
1 7

TuneRC

Poly F405 2S-4S 20A AIO V1.2

Poly F405 2S-4S 20A AIO V1.2

$69.99 USD
$69.99 USD
Sale Sold out
Shipping calculated at checkout.

Pairs perfect with the Osito!

Easy to solder and versatile AIO for lightweight toothpicks and cinewhoops.
F405 MCU | BMI270 Gyro | Preflashed with Betaflight FC Firmware, Bluejay ESC Firmware | 5UARTs | Light Weight: 6.1g | 8M Flash Blackbox | Big soldering pads | Easy to Access Battery Leads

Poly AIO V1.2 is Here. The OG Poly F405 AIO is Getting Better.

Several improvements are made to the V1.2 to make the Poly AIO easier to solder and work with, and to meet pilots needs. Detailed improvements are as below.

  • Bigger and easier to access battery lead and capacitor soldering pads.
  • Bigger flash blackbox. The blackbox flash is updated from 4Mbyte to 8M flash. Pilots can now record more flying data, which makes the tuning easier.
  • New inverter is used. Now, you don’t need to bridge the jumper pads any more. Just wire the SBUS receiver to the UART4, and you are good to go.
  • Higher current 3.3V LDO is featured onboard, the power supply is much improved.
View full details
